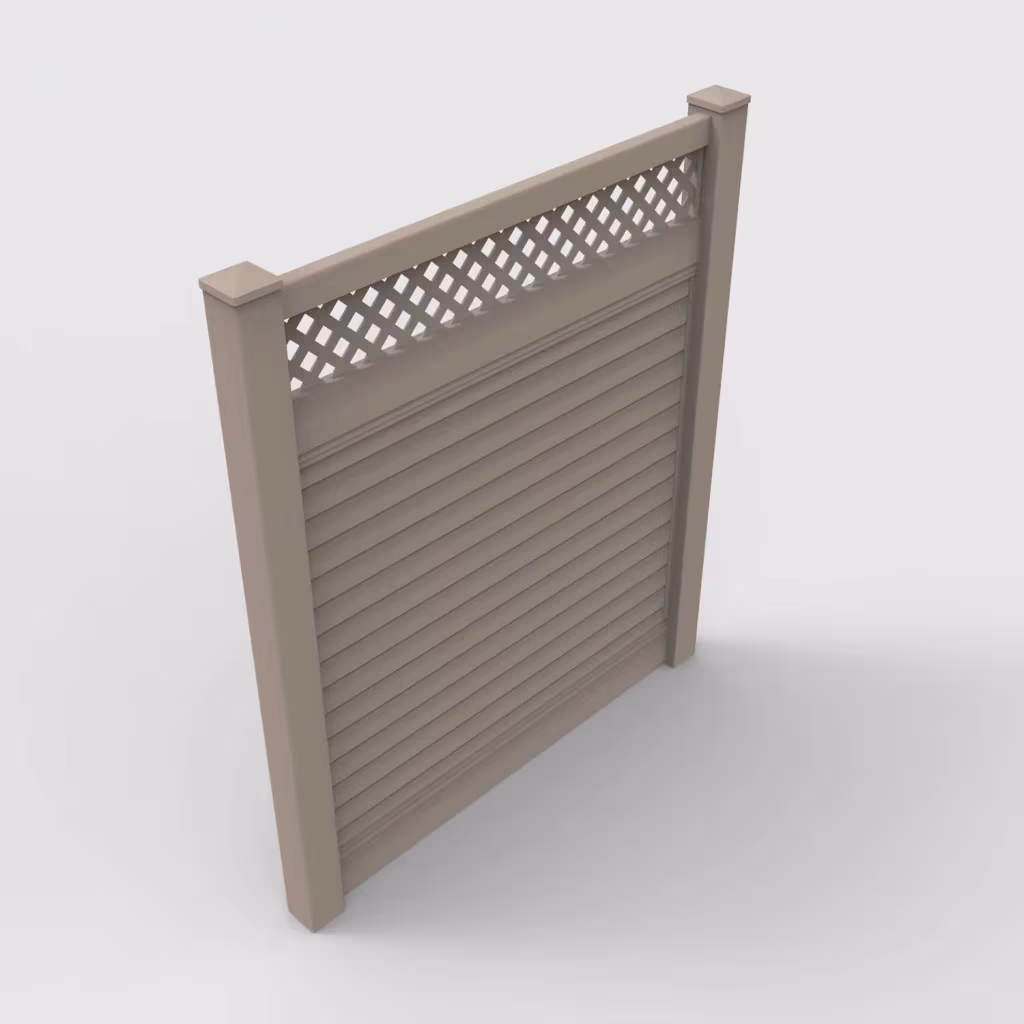

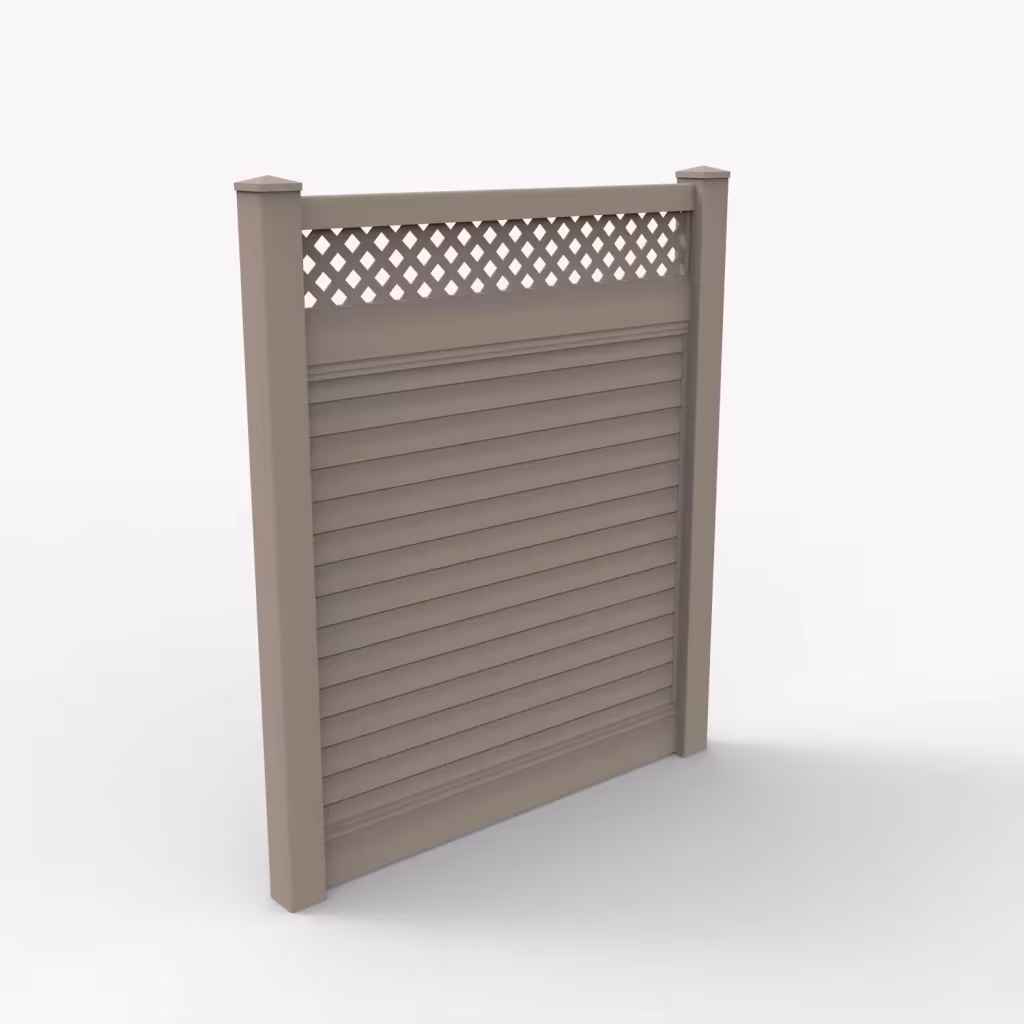

Vinyl Horizontal Privacy Fence Panel w/Lattice Top, 7ft height 6ft width, Clay

Pemberton Collection

Clay’s warm terracotta-brown tone sits at the deep end of the Pemberton color chart, and this 7-foot panel carries the collection’s heaviest build: metal inserts in the top, bottom, and middle rail, plus reinforced tongue-and-groove boards, the same full reinforcement Clay holds at every Pemberton height.

Six feet of solid board closes off sightlines completely, the maximum solid run in this style, with a 1-foot lattice crown finishing the top for taller, exposed yards. Get a free quote on Clay vinyl fencing.

All materials are sourced and manufactured in the United States.

Made in USA

What's Included

Each kit ships with the components below, pre-cut to size.

Component Specification Quantity
Post 5in x 5in, L-108in Qty (2)
Rail (Top) Hollow Rail 2in x 3.5in, L-65in Qty (1)
Rail (Middle) Pocket Rail 1.75in x 8in, L-65in Qty (1)
Rail (Bottom) Pocket Rail 1.75in x 8in, L-65in Qty (1)
T&G Panels 7/8in x 11.3in, L-62in Qty (6)
U-Channel (for bottom T&G) 7/8in, L-54in Qty (2)
U-Channel (for Acrylic) 1in x 1in, L-8.5in Qty (2)
Post Caps External 5in x 5in Qty (2)
Lattice Strip 1.125in Small Diamond 48in x 62in Qty (1)
Metal Insert (Top Rail) 2in x 3.5in, L-65in Qty (1)
Metal Insert (Bottom Rail) 1.75in x 8in, L-65in Qty (1)
Metal Insert (Middle Rail) 1.75in x 8in, L-65in Qty (1)
Metal Insert (T&G) 7/8in, L-62in Qty (3)

Customize Your Panel

Pick the color and height that match your project. Selections preview instantly.

Select Panel Color
Select Panel Height

We partnered with Synchrony so a new fence doesn't have to wait on the whole budget. Zero down, low monthly payments, and flexible terms, all on approved credit. Pick the panels you want, get them installed now, and spread the cost over months that work for you. Here's how our financing works, terms and application included.

  • Eco-Friendly
  • Lifetime Warranty
  • High Quality Materials
  • Durability Materials

Pemberton Vinyl Horizontal Privacy Fence Panel, Clay, 7 ft, 6 ft Wide

Clay reads as a warmer, more terracotta-leaning tone than Tan, the deepest of the three Pemberton colors. At 7 feet the panel is built with 6 feet of solid horizontal board, the tallest solid section this style offers, plus a 1-foot lattice crown on top. That solid height matches the 6-foot panel below it; the extra foot at 7 feet goes into the lattice rather than more board, the same pattern the other two colors follow.

This size holds to 5×5 posts at 108 inches long, with a metal insert in the top rail, the bottom rail, and the middle rail. Six tongue-and-groove boards fill the solid section, and three of them carry a metal insert of their own, matching the reinforcement pattern Clay uses at 8 feet. A 1.125-inch small-diamond lattice panel, 48 by 62 inches, closes out the frame on top.

Among the three Standard Solid Pemberton colors, White, Tan, and Clay, this is the deepest and warmest tone, and it is also the one built with the fullest rail reinforcement at every height. Clay’s color runs through the vinyl rather than sitting on the surface as paint, the same sourced-through construction the whole Pemberton line uses.

The style holds to a fixed 6-foot width across its 5 to 8-foot height range. Across the range, 5 feet is the entry size, 6 feet is the standard privacy pick, and 7 feet, like this panel, suits taller or more exposed lots before the 8-foot maximum height.

US-made and UV-protected, the vinyl in this panel resists water without needing paint or stain over its life, just a periodic rinse. A transferable limited lifetime warranty covers the Clay material, and PVAF adds its own 5-year workmanship warranty on the installation. Matching Clay gates are available, and PVAF fabricates custom heights and widths beyond this 7-foot standard size. Get a free quote on Clay vinyl fencing.

Clay vinyl horizontal privacy fence with an open lattice top steps down a terraced hillside yard shaded by oak
Pemberton Vinyl Privacy w/Lattice-Top Fence Panel, Clay
Clay vinyl horizontal privacy fence lines a brick-edged garden path at a landscaped duplex, its lattice top open above

Panel Details

Panel Style
Privacy Horizontal w/Lattice-Top
Collection
Pemberton
Nominal Panel Height
7 feet
Actual Panel Height
84 inches
Nominal Panel Width
6 feet
Actual Panel Width
72 inches
Proportional Split
6ft+1ft
Color
Clay
Color Family
Standard Solid
Post Contact Type
Soil or Concrete
Warranty
Transferable Limited Lifetime Warranty
Features
UV Protected, Water Resistant
Material
Vinyl (PVC)
Origin
United States 🇺🇸
